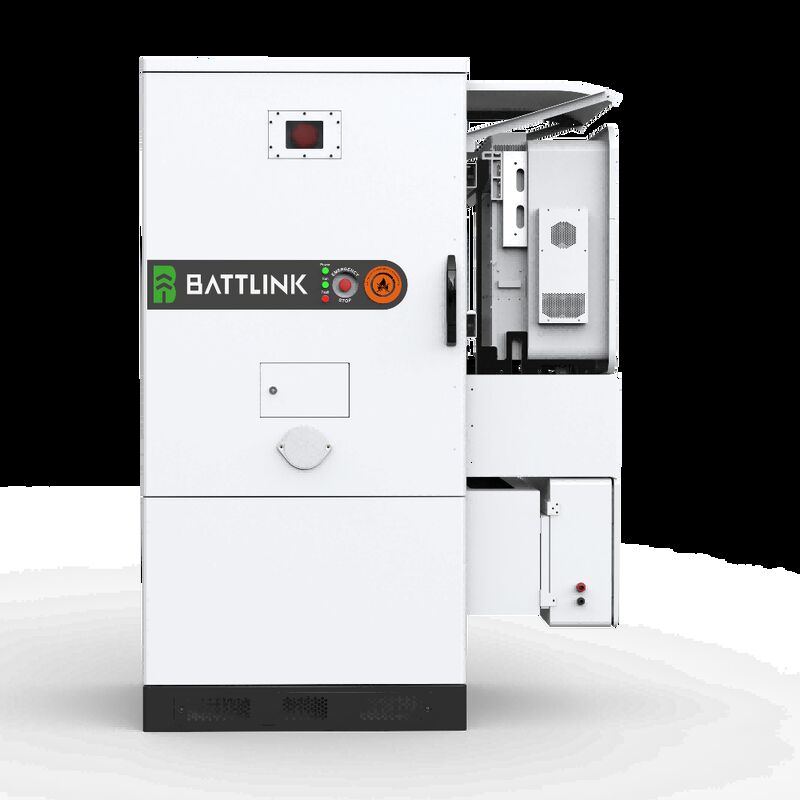

241kWh Hybrid Energy Storage System
Unlike conventional on-grid energy storage systems that rely solely on grid availability, the 125kW / 241kWh Hybrid Air-Cooled Energy Storage System adopts an all-in-one integrated design, combining a 241kWh battery system with a built-in hybrid inverter in a compact enclosure.
With integrated 240kWp PV MPPT modules, a 125kW battery inverter, and an ATS module, and supported by a smart cloud-based energy management platform, the system intelligently coordinates grid, PV, generator, and battery to ensure higher energy independence, improved reliability, and efficient energy conversion.
Advantages & Features
• All-in-One Integrated Design – Battery, hybrid inverter, PV MPPT, and ATS modules are combined into one compact system, reducing footprint and installation time.
• Hybrid Energy Management – Supports coordinated operation of grid, PV, diesel generator, and battery for maximum flexibility.
• High PV Integration Capacity – Built-in 240kWp MPPT modules enable direct connection of large PV arrays without external equipment.
• Stable & Reliable Performance – Air-cooled thermal management ensures stable operation and cost-effective maintenance.
• Smart Cloud Platform – Enables remote monitoring, system diagnostics, and intelligent energy dispatching.
• Scalable & Future-Ready – Designed to support evolving energy demands and hybrid power applications.
| Parameter | BATT-CI-125/241-M |
| Application | Microgrid |
| Cell Type | LFP 3.2V / 314Ah |
| Battery Module | 20S1P / 20.096kWh |
| System Configuration | 240S1P |
| Rated Voltage | 768V |
| Voltage Range | 648–864V |
| System Energy | 241.152kWh |
| Charge / Discharge Rate | 0.5P |
| Cycle Life | ≥6000 cycles |
| Max. PV Input Power | 240kW |
| PV Voltage Range | 150–950V |
| Max. Input Current | 10 × 42A |
| MPPT / Max. Strings | 46315 |
| Rated Power | 125kW |
| Rated Voltage | 400V |
| Rated Current | 180.4A |
| Operating Frequency | 50Hz / 60Hz |
| Power Factor | 0.8 Leading ~ 0.8 Lagging |
| System Efficiency | 0.86 |
| Thermal Management | Air-cooled |
| Fire Protection | Aerosol / Perfluorohexanone |
| Operating Temperature | -20 ~ +55°C (>45°C derating) |
| Operating Humidity | 0–95% (non-condensing) |
| Operating Noise | ≤75 dB(A) @ 3m |
| Max. Altitude | 4000m (>2000m derating) |
| Ingress Protection | IP54 |
| Communication | 4G / WiFi |
| Max. Parallel Units (Off-grid) | 6 |
| Weight | 2.5T |
| Dimensions (W×D×H) | 1606 × 1478 × 1990 mm |
✔ Simplified system architecture with reduced installation and commissioning effort
✔ Optimized energy efficiency through intelligent scheduling and control
✔ Lower total cost of ownership with integrated design and cloud management
✔ Ideal for commercial, industrial, and hybrid power applications
✔ Reliable solution for regions with unstable grids or high energy costs
